Filter Elements

location:JoveFlow Products Filter Elements

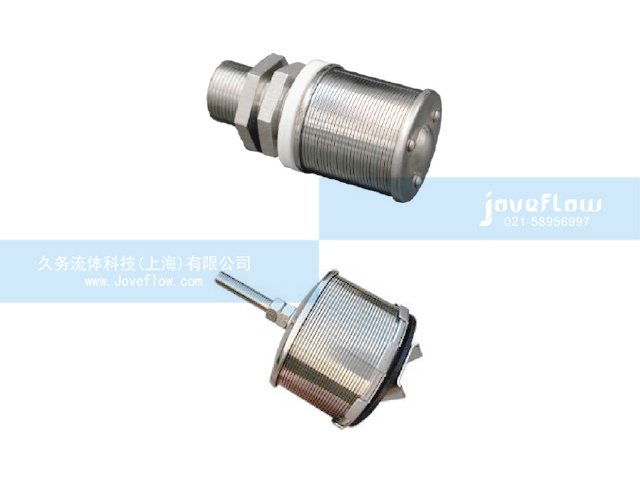

Filter Nozzles JVSM

Filter Nozzles JVSM

product introduce:For intustrial water are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens.

DetailsRangeOrder


For intustrial water are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.

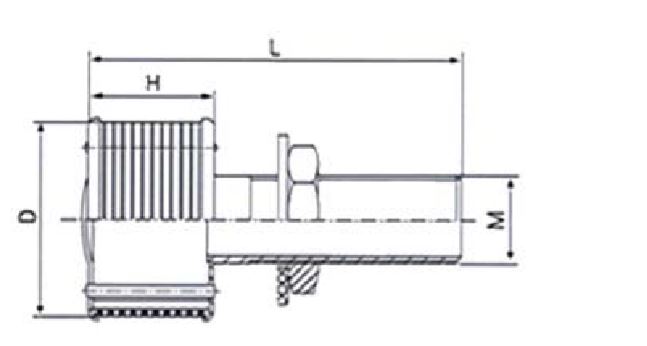

NO.  TYPE SLOT(mm) SIZE(mm) 0.2mmSLOT
Flow area mm2
D H L M
1 JVSM45-1-A 0.2-0.25 Φ45 35 85 M20 390
2 JVSM45-1-B 0.2-0.25 Φ45 45 95 M20 500 (0.5t/h)
3 JVSM45-2-B 0.2-0.25 Φ45 45 95 M24 500
4 JVSM53-2-A 0.2-0.25 Φ53 35 85 M24 460
5  JVSM53-2-B * 0.2-0.25 Φ53 45 95 M24           590  (1t/h)
6 JVSM53-2-C 0.2-0.25 Φ53 55 105 M24 720
7 JVSM53-3-B 0.2-0.25 Φ53 45 95 M32 590
8 JVSM53-3-C 0.2-0.25 Φ53 55 105 M32 720
9 JVSM57-2-A 0.2-0.25 Φ57 35 85 M24 500
10 JVSM57-3-B 0.2-0.25 Φ57 45 95 M32 650
  11  JVSM57-3-C * 0.2-0.25 Φ57 55 105 M32            800  (2t/h)
12 JVSM70-3-B 0.2-0.25 Φ70 45 95 M32 800
13 JVSM70-3-C 0.2-0.25 Φ70 55 105 M32 1000  (3t/h)
14 JVSM70-3-E 0.2-0.25 Φ70 80 130 M32 1500

Customized size is possible.
could help to design according to the application and requirement.
The nozzles customized range as below:



  1. Slot range: 0.05-2mm
  2. Dimension: Diameter, Screen Height, Length could produce according to  actual requirement and application
  3. Thread, gasket, nut according to requirement
